YD106 Economic Wax Ribbon
FINERAY
YD106 Wax
YD106 Economic Wax Thermal Transfer Ribbon
1.What is YD106.
YD106 is a standard wax ribbon with good print quality, universal media adaptability and an affordable price. YD106 is used in the coding applications of fast growth industries including warehousing, logistics and internet sales. Fineray's unique back coating combined with lower energy requirements extend the performance and life of the print head.
| Total Thickness | 7.4±0.3 um |
| Ink Thickness | 2.9±0.2 um |
| Ink Melt Point | 70°C |
| Static | ≤4 kv |
| Optical Density | ≥1.7D |
| Color Density | ≥2.0 DB |
| Compatible Printers | Zebra,Sato,TSC,Datamax,CAB,Toshiba TEC etc. |
| Paper Core | Finish roll--1''(25.4mm) & 1/2''(12.7mm) Attached core & Notch are avaliable upon request |
| Ink Side | CSI (inside inking) CSO(outside inking) |

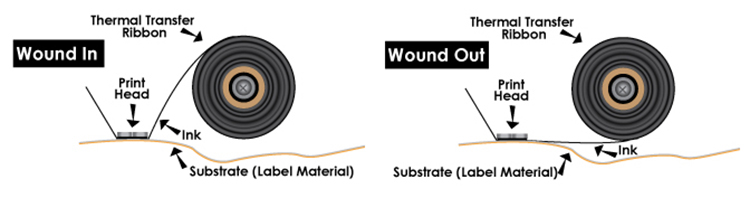

2.Ribbon categories/Wind Directions
You may notice when shopping for these ribbons that there are two categories: coated side out (CSO) and coated side in (CSI). This refers to where the ink coating is on the ribbons, affecting how they're wound and fed through the printer. Most printers can only take one style or the other..Before chooose the ribbon you need to know what kind of ribbon(CSO or CSI) to match your printer.
3.How to storage:
In order to ensure the best performance, please use the following environmental requirements, transportation and storage.
1) Use environment: 5℃-35℃ ,The relative humidity is 45%-85%,
2) Transport environment:-5℃-45℃,The relative humidity is
20% -85%, Time no more than one month.
3) Storage environment: -5℃-40℃,The relative humidity is
20%-85%, storage time no more than one year.
4.What are the typical uses of wax Thermal Transfer ribbons for barcode printers?
Storage
Shipping
Crate
Distribution labels
Tags
Bag of parts/products
Signage and logos
5.What are the advantages of wax thermal transfer ribbons?
Ideal for short-term use
Good printing quality: ensures a good readability/scanning of barcodes, digits and characters.
Fast print speed up to 12 ips depending on the label/ribbon combination.
Good ink blackness, even on rough label materials like velum.
Competitive ribbons: lower prices than wax-resin and resin based ribbons.
Receptor multi-compatibility: the ink has a good adhesion on coated or uncoated labels.
Low energy required to transfer the ink: helping to extend the print head lifetime.

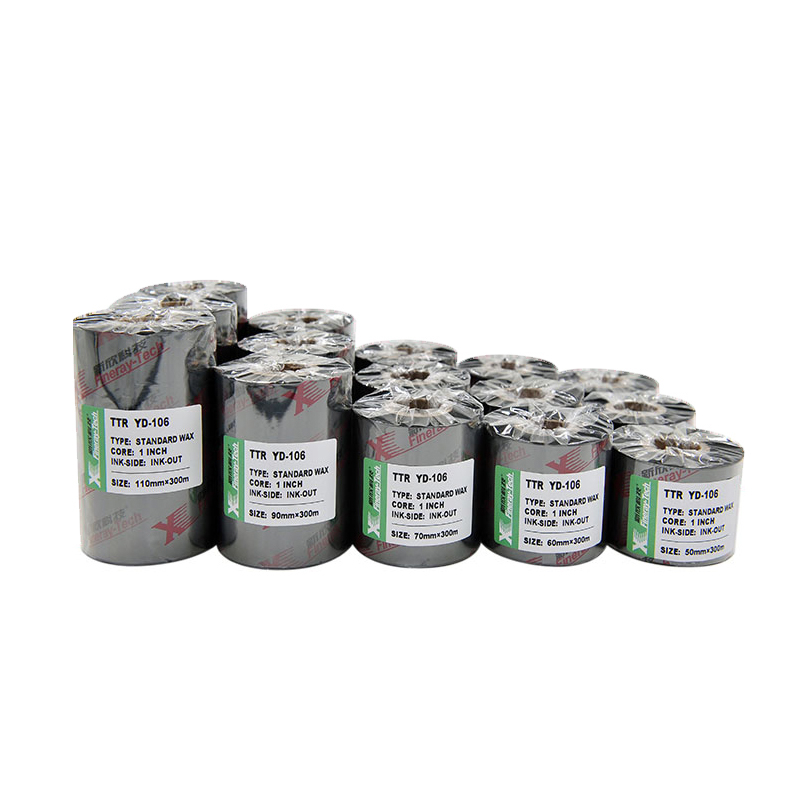

6.Usual size that we can make.
Other size you need is also available,remember,we are thermal transfer ribbon manufacturer,we can cut any size you need!
7.Printing effect of thermal transfer ribbon YD106.

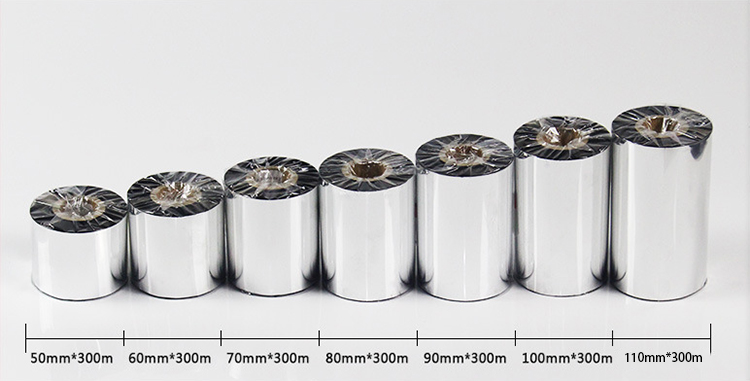

8.TTR size guide.

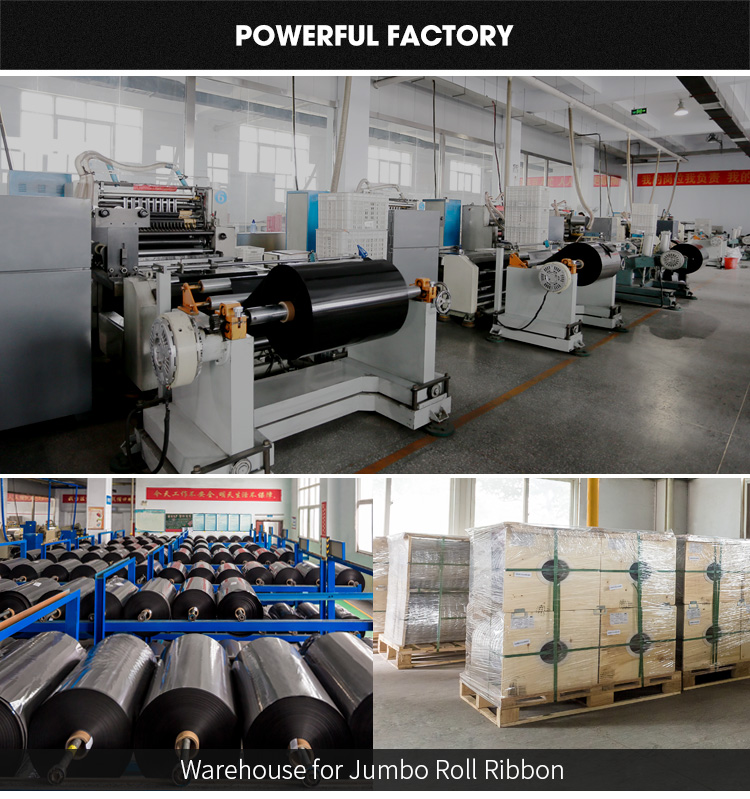

9.About our factory
10.After sale service.
