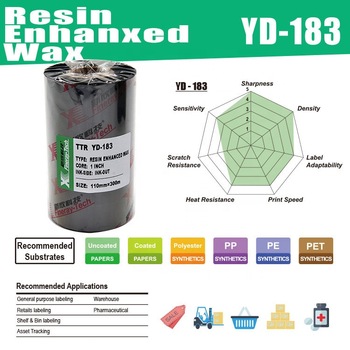

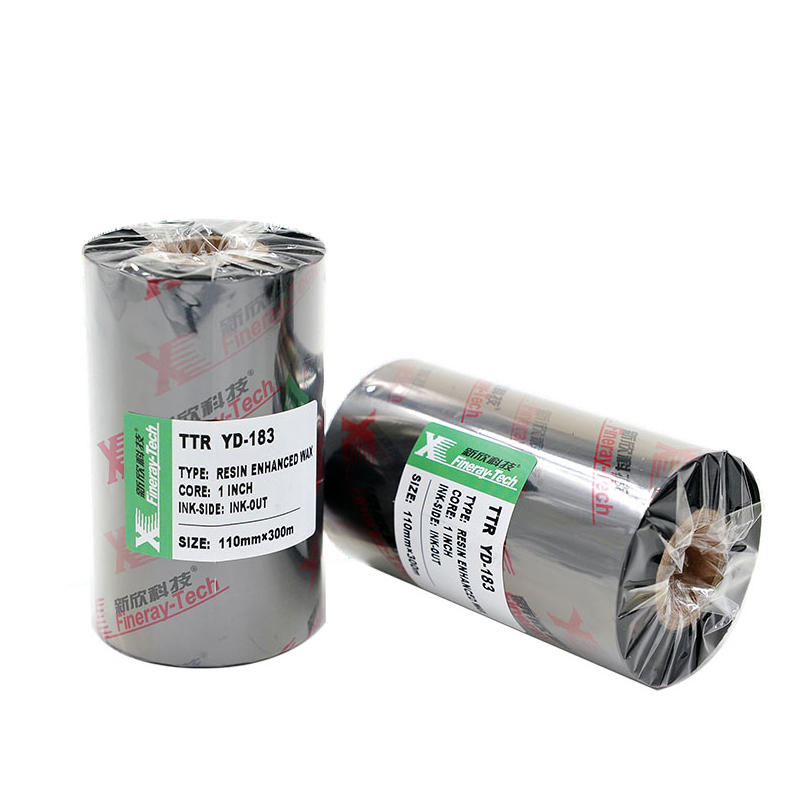

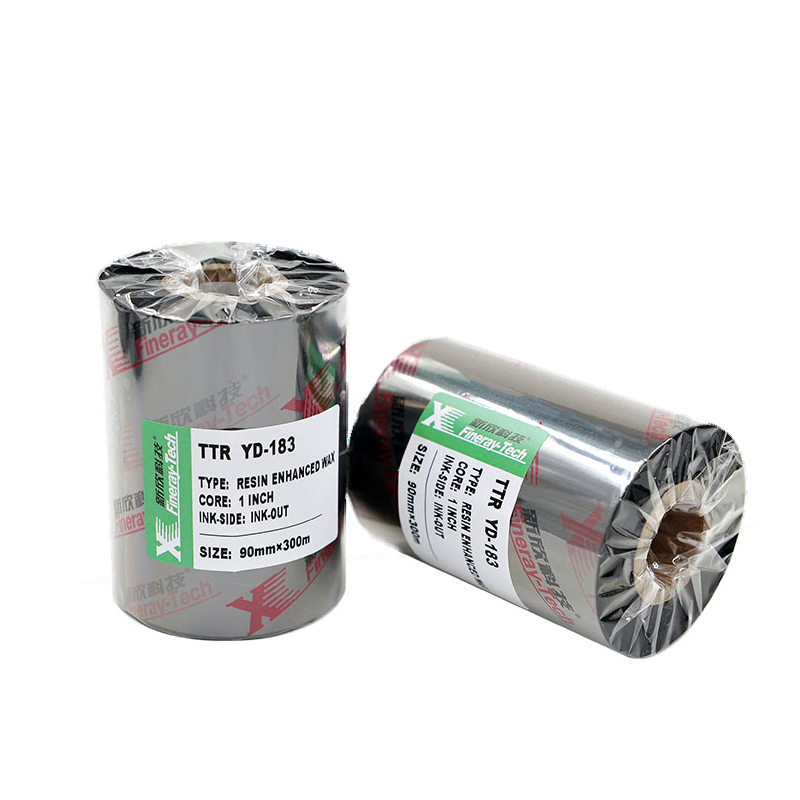

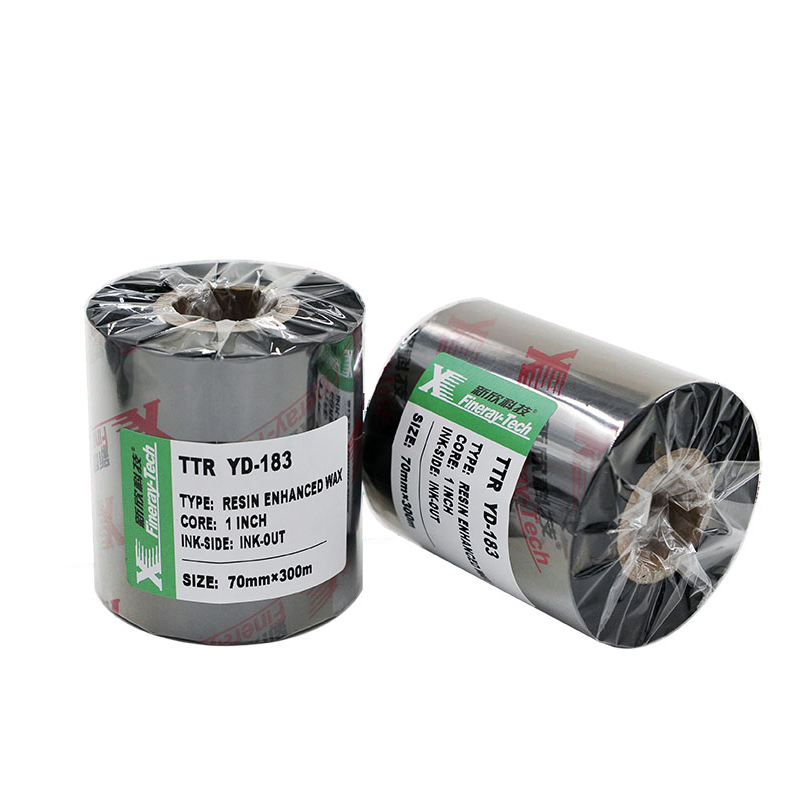

YD183 Premium Resin Enhanced Wax Ribbon
FINERAY
YD183
YD183 Premium Resin Enhanced Wax Ribbon
1.Details of YD183.
| Total Thickness | 7.1±0.3 um |
| Ink Thickness | 2.6±0.2 um |
| Ink Melt Point | 80°C |
| Static | ≤0.04 kv |
| Optical Density | ≥1.7D |
| Color Density | ≥2.0 DB |
| Compatible Printers | Zebra,Sato,TSC,Datamax,CAB,Toshiba TEC etc. |
| Paper Core | Finish roll--1''(25.4mm) & 1/2''(12.7mm) Attached core & Notch are avaliable upon request |
| Inkside | CSI (inside inking) CSO(outside inking) |
2.A short description of YD183.
Resin enhanced premium wax ribbons which are designed for higher durable requirement labels. It has better scratch and smudge resistance at acceptable costs. Prints on a wide range of papers and labels. Back-coat technology protects the print head.
3.Ribbon categories/Wind Directions
You may notice when shopping for these ribbons that there are two categories: coated side out (CSO) and coated side in (CSI). This refers to where the ink coating is on the ribbons, affecting how they're wound and fed through the printer. Most printers can only take one style or the other..Before chooose the ribbon you need to know what kind of ribbon(CSO or CSI) to match your printer.

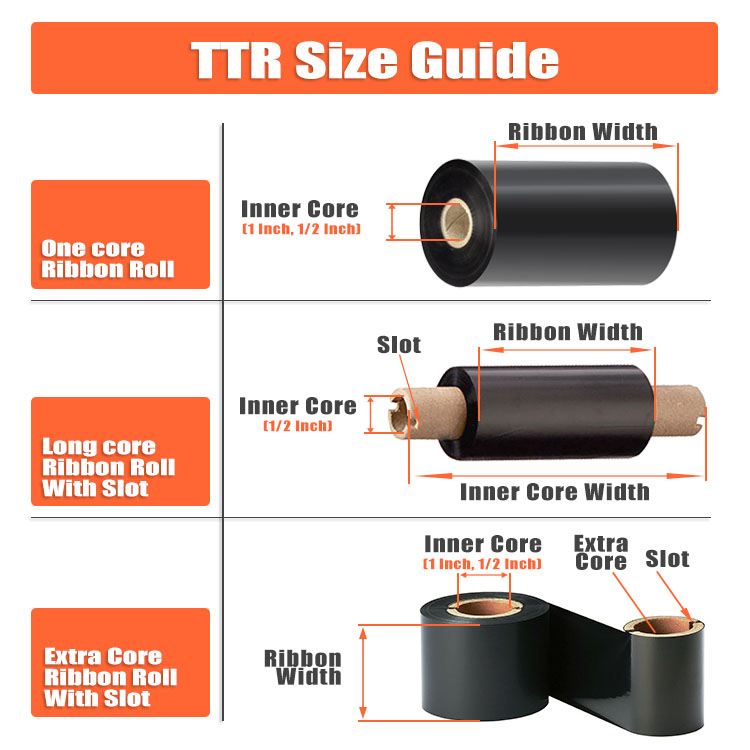

4.TTR size guide for you.
5.Printing effect:
6.Product application industry.
7.Storage:
In order to ensure the best performance, please use the following environmental requirements, transportation and storage.
1) Use environment: 5℃-35℃ ,The relative humidity is 45%-85%,
2) Transport environment:-5℃-45℃,The relative humidity is
20% -85%, Time no more than one month.
3) Storage environment: -5℃-40℃,The relative humidity is
20%-85%, storage time no more than one year.
8.Factory of Thermal Transfer Ribbon.
