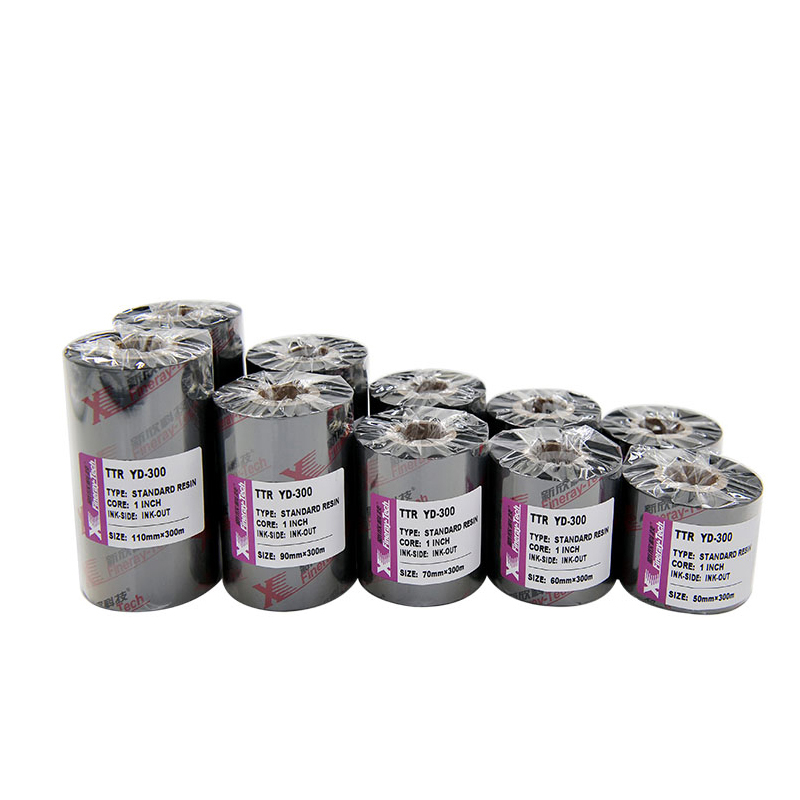

YD300 Resin Thermal Transfer Ribbon
FINERAY
YD300 Resin Thermal Transfer Ribbon
YD300 Resin Thermal Transfer Ribbon
1.YD300 offers strong resistance against alcohol, chemicals and specially used for outdoor (extreme weather).
Resin Thermal Transfer ribbons are designed for the most demanding applications in need of resistances to mechanical stresses, high or low temperature environments, or even solvents.Best printing receptors for Resin ribbons are:Paper labels: Glossy coated Synthetic labels: Polypropylene, Polyethylene, Polyester,Specific labels: Polyimide, Acrylate, textile Flexible packaging films
| Total Thickness | 6.9±0.3 um |
| Ink Thickness | 2.4±0.2 um |
| Ink Melt Point | 100°C |
| Static | ≤0.02 kv |
| Optical Density | ≥1.7D |
| Color Density | ≥2.0 DB |
| Compatible Printers | Zebra,Sato,TSC,Datamax,CAB,Toshiba TEC etc. |
| Paper Core | Finish roll--1''(25.4mm) & 1/2''(12.7mm) Attached core & Notch are avaliable upon request |
| Ink Side | CSI (inside inking) CSO(outside inking) |
2.What are the typical uses of resin Thermal Transfer ribbons for barcode printers?
Laboratories; Signage and logos; Rating plate; Medical device;Industrial labels;Electrical component;Bag of parts/products;Blood bag;Plant marking;Chemicals;Printed circuit board;Care labels;Tyres;Frozen food packaging;
Hot food packaging;Flexible packaging;
3.What are the advantages of resin thermal transfer ribbons?
High print durability even in very harsh environment:
- Excellent resistance to solvents and to high temperature
- Excellent resistance to smudge and scratch
- Good resistance to high temperature
Excellent printing quality thanks to a high sharpness capability
4.What makes a Resin ribbon different from Wax and Wax-resin ribbons?
Print resistance: Resin ribbons provide the highest durability compared to any other Thermal Transfer ribbon.
Print speed: Resin inks require more energy from the printhead to transfer on the receptor. Therefore, the printer speed must be lower (max 10ips) compared to Wax-resin ribbons.
Label compatibility: Resin ribbons deliver a premium print quality on premium label materials and also on specific materials like textile garment labels for example. However, the versatility of a Resin ribbon is more limited compared to a wax-resin ribbon especially on uncoated or some coated papers.
Printer compatibility: Similar to Wax-resin ribbons, there are Resin ribbons to run with all thermal printers or coders regardless the printhead technology. This is why there are Resin ribbons for Flat-head printers and Resin ribbons for Near-edge/Corner-edge printers.

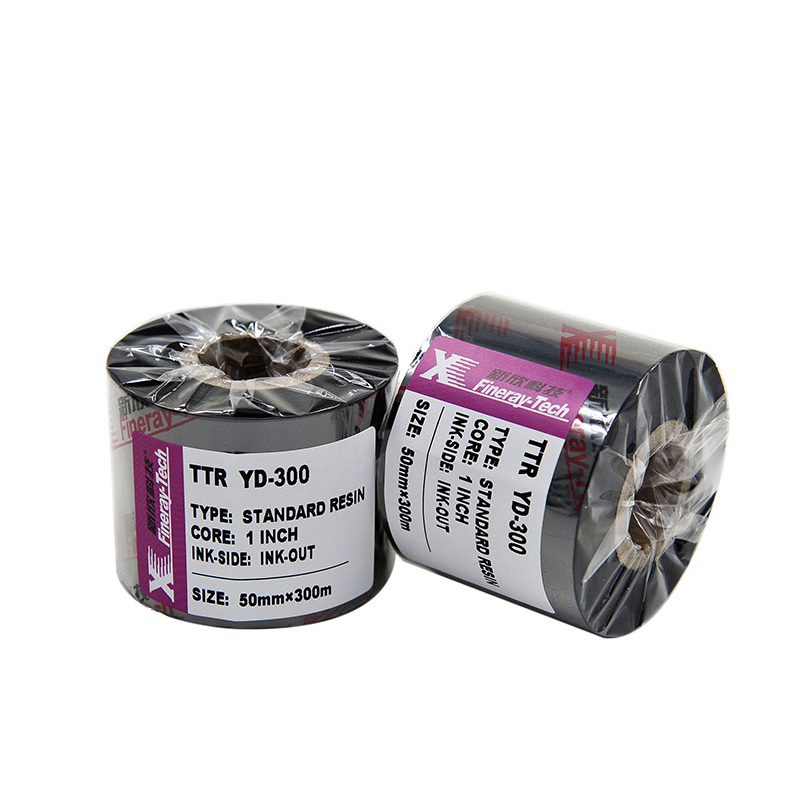

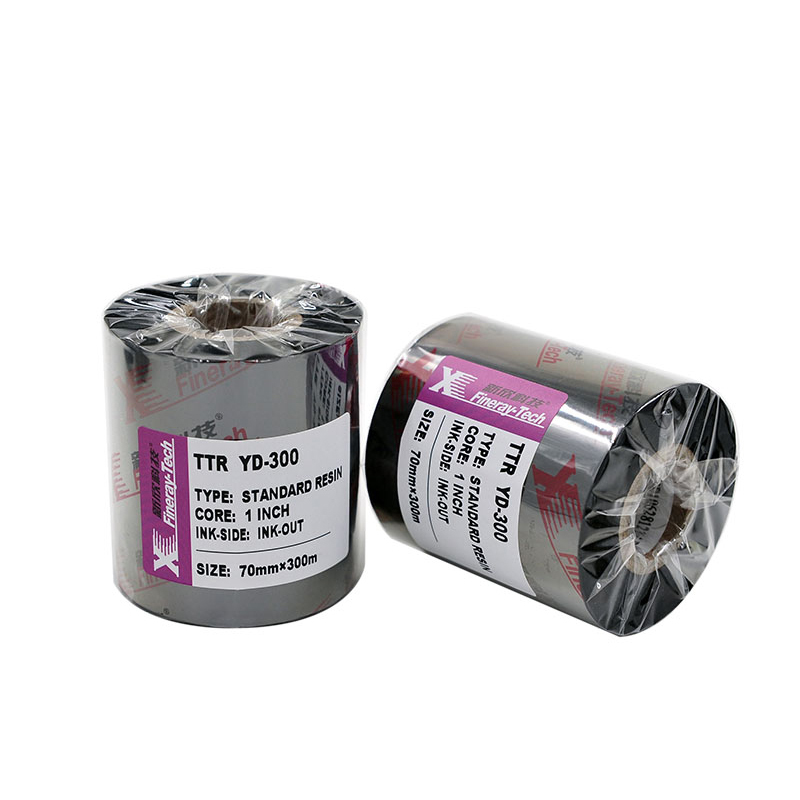

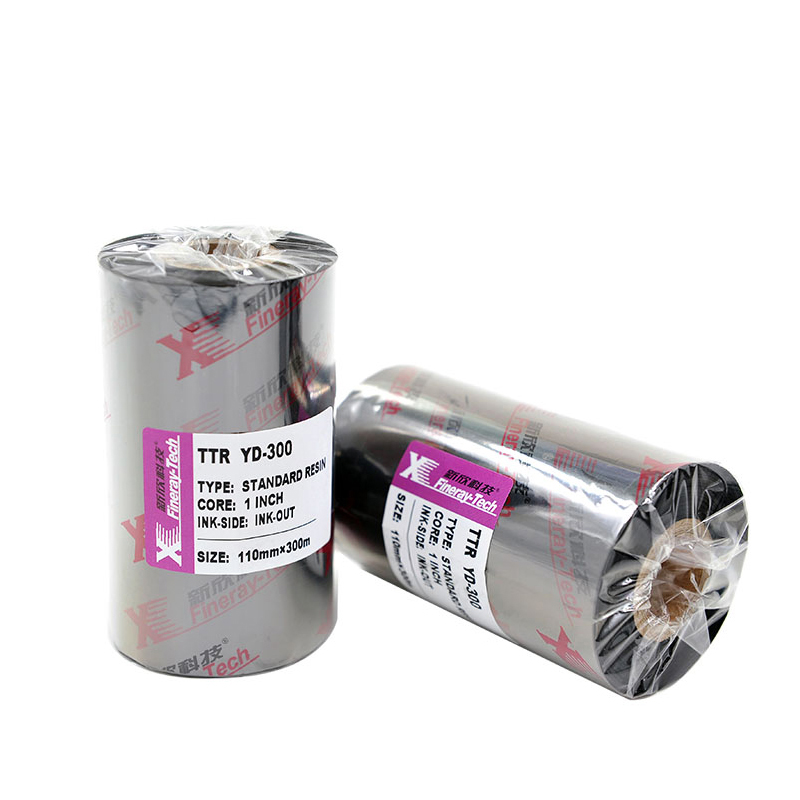

5.Usual size that we can manufacture.
6.Ribbon categories/Wind Directions
You may notice when shopping for these ribbons that there are two categories: coated side out (CSO) and coated side in (CSI). This refers to where the ink coating is on the ribbons, affecting how they're wound and fed through the printer. Most printers can only take one style or the other..Before chooose the ribbon you need to know what kind of ribbon(CSO or CSI) to match your printer.

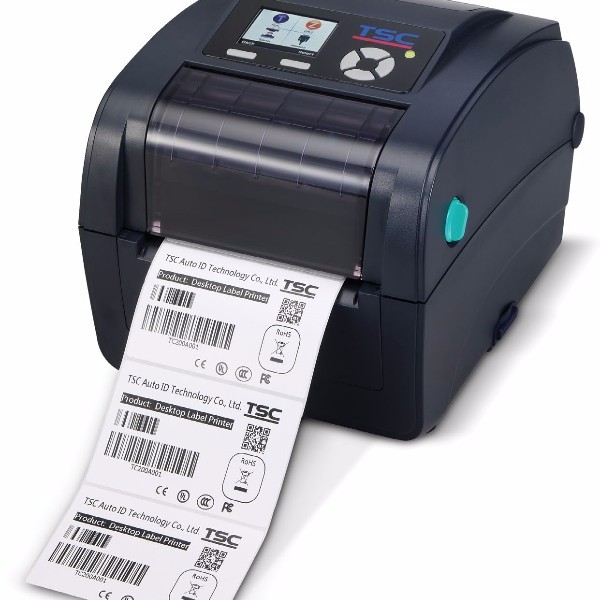

7.99% brands of barcode printers that our thermal transfer ribbon can adapt.

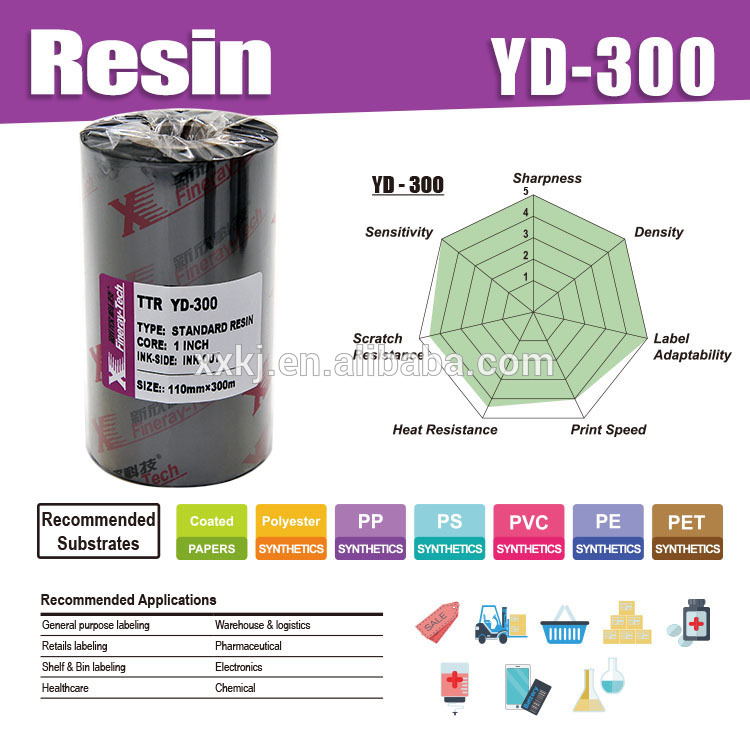

8.Printing effect of resin ribbon.
9.Application of resin ribbon.
10.Any size you can contact,we can cut for you.
